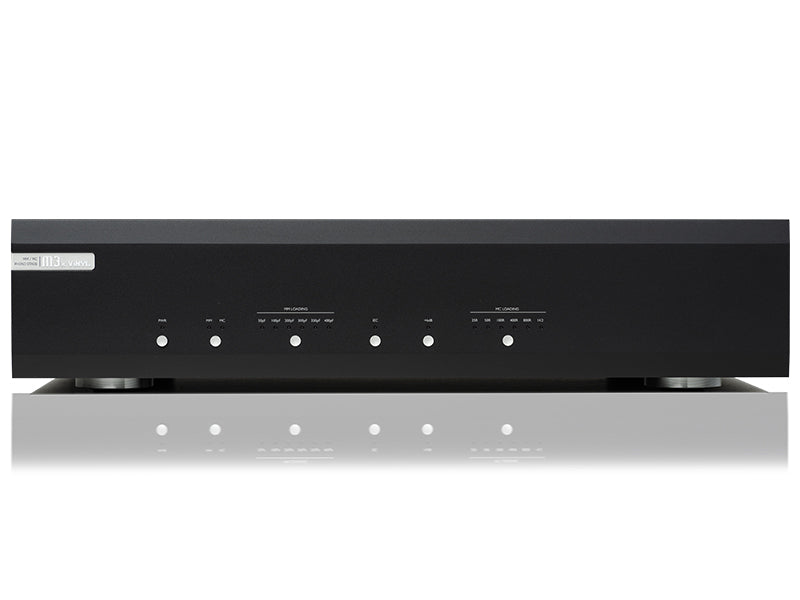

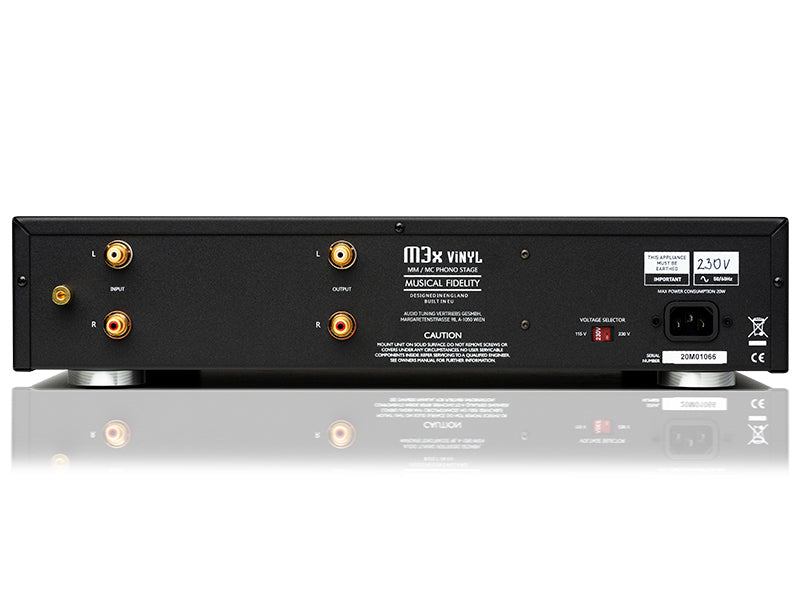

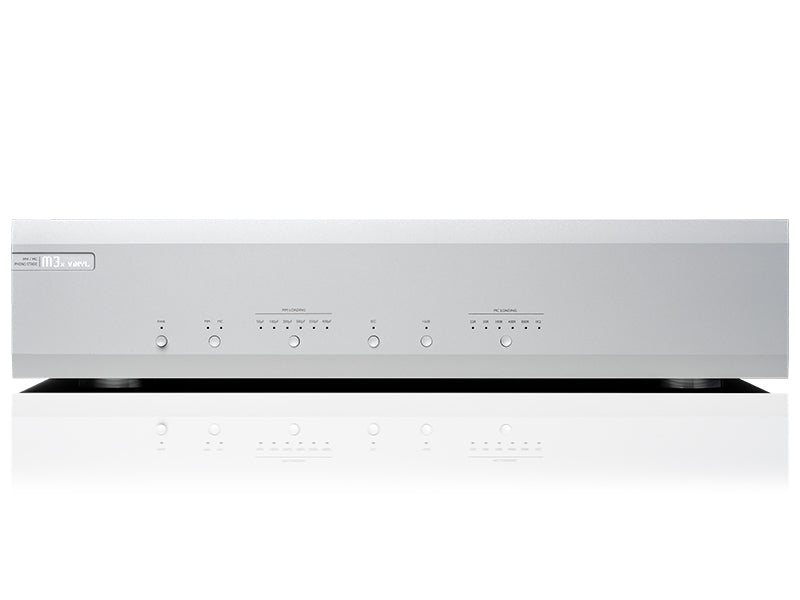

Musical Fidelity M3x Vinyl pre phono
MM Input
• Frequency response: RIAA or RIAA/IEC ±0 .2dB
• Input sensitivity: 5mV in for 500mV out (at 1 kHz)
• Input impedance: 47KΩ
• Input capacitance: 50-400pF selectable
• Gain: 40 or 46dB with +6dB function
• THD+N: <0.028%
• Signal to noise ratio: 71dB
• Crosstalk: better than 100dB MC Input
• Frequency response: RIAA or RIAA/IEC ±0.3dB
• Input sensitivity: 500μV in for 500mV out (at 1 kHz)
• Input impedance: 25Ω to 1,2KΩ selectable
• Gain: 60 or 66dB with +6dB function
• THD+N: <0.28%
• Signal to noise ratio: 59dB
• Crosstalk: better than 90dB Output
• 1 pair RCA: left and right 500mV nom 10V max Input
• 1 pair RCA
Power requirement
• Mains voltages: 230V/115V; AC 50/60Hz
• Consumption: 20 Watts maximum. 0W in standby)
Weight and Dimensions
• Unit only, unboxed: 6.59 kg
• In shipping carton & inc . accessories: 10.15 kg
• W x H(incl. feet) x D(incl. terminals): 440 x 105 x 390mm
Standard accessories
• Mains lead: 10 Amp IEC
