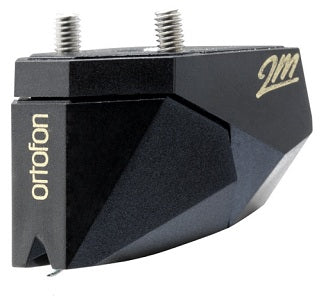

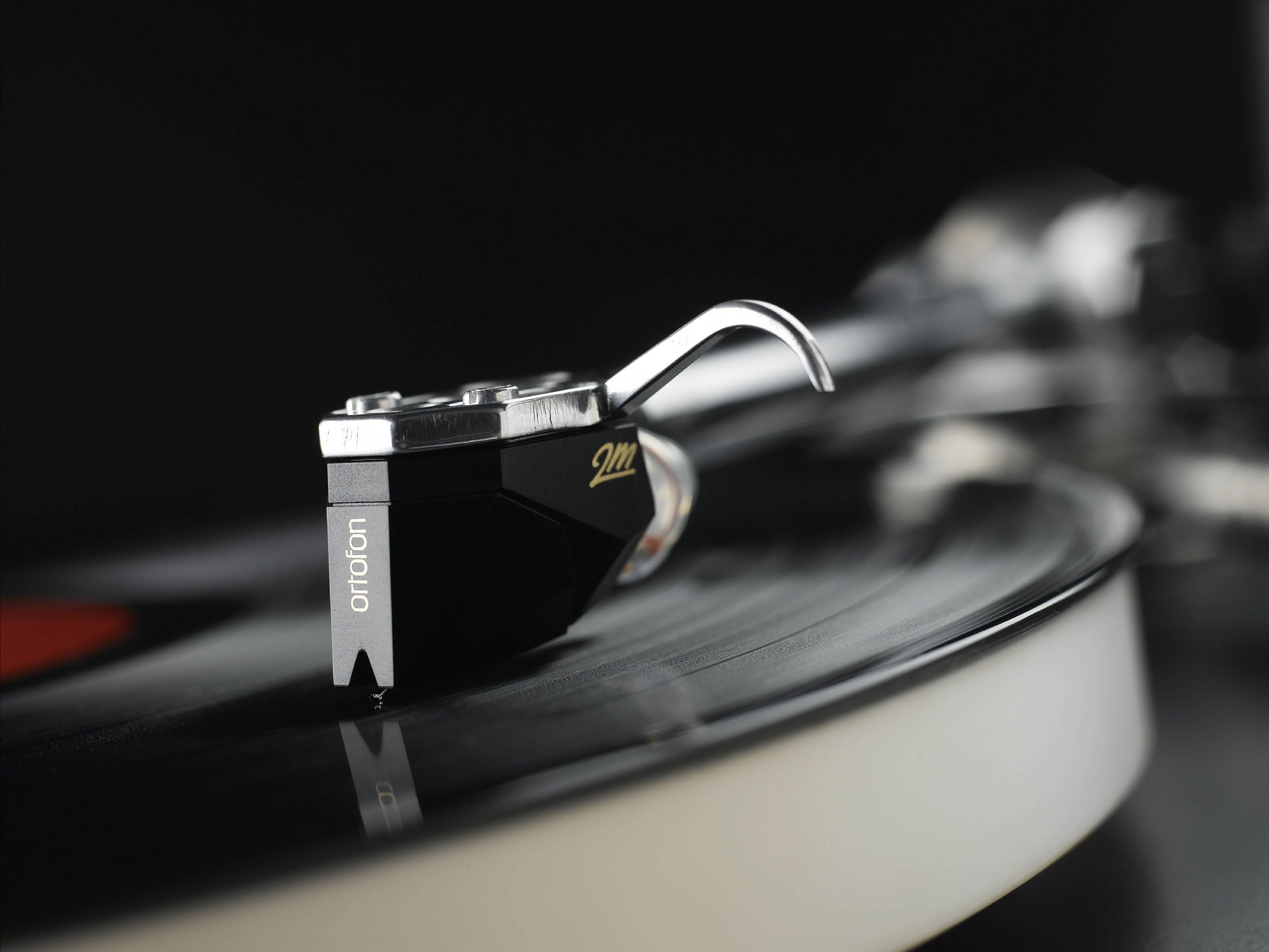

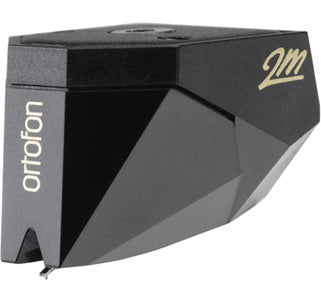

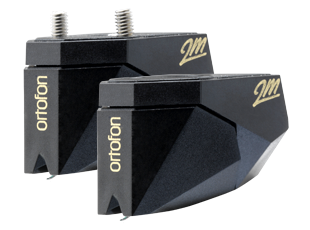

Fonorivelatori a Magnete Mobile ORTOFON 2M BLACK
Descrizione
|
Technical data 2M Black / 2M Black Verso |
|
| Output voltage at 1000 Hz, 5cm/sec. | 5 mV |
| Channel balance at 1 kHz | 1 dB |
| Channel separation at 1 kHz | 26 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at - 3dB | 20-31.000 Hz |
| Frequency response | 20-20.000 + 2 / - 0 dB |
| Tracking ability at 315Hz at recommended tracking force | 80 µm |
| Compliance, dynamic, lateral | 22 µm/mN |
| Stylus type | Nude Shibata |
| Stylus tip radius | r/R 6/50 µm |
| Tracking force range | 1,4-1,7g (14-17 mN) |
| Tracking force, recommended | 1,5 g (15 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 1,2 kOhm |
| Internal inductance | 630 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 150-300 pF |
| Cartridge colour, body/stylus | Black/Black |
| Cartridge weight | 7,2 g |
2M Black accessories included the package:
1 x Stylus brush, carbon fibre
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
1 x Stylus pressure gauge
2M Black Verso accessories included the package:
1 x Stylus brush, carbon fibre
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6
1 x Stylus pressure gauge
1 x Socket spanner
|
Technical data 2M Black / 2M Black Verso |
|
| Output voltage at 1000 Hz, 5cm/sec. | 5 mV |
| Channel balance at 1 kHz | 1 dB |
| Channel separation at 1 kHz | 26 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at - 3dB | 20-31.000 Hz |
| Frequency response | 20-20.000 + 2 / - 0 dB |
| Tracking ability at 315Hz at recommended tracking force | 80 µm |
| Compliance, dynamic, lateral | 22 µm/mN |
| Stylus type | Nude Shibata |
| Stylus tip radius | r/R 6/50 µm |
| Tracking force range | 1,4-1,7g (14-17 mN) |
| Tracking force, recommended | 1,5 g (15 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 1,2 kOhm |
| Internal inductance | 630 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 150-300 pF |
| Cartridge colour, body/stylus | Black/Black |
| Cartridge weight | 7,2 g |
2M Black accessories included the package:
1 x Stylus brush, carbon fibre
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
1 x Stylus pressure gauge
2M Black Verso accessories included the package:
1 x Stylus brush, carbon fibre
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6
1 x Stylus pressure gauge
1 x Socket spanner
