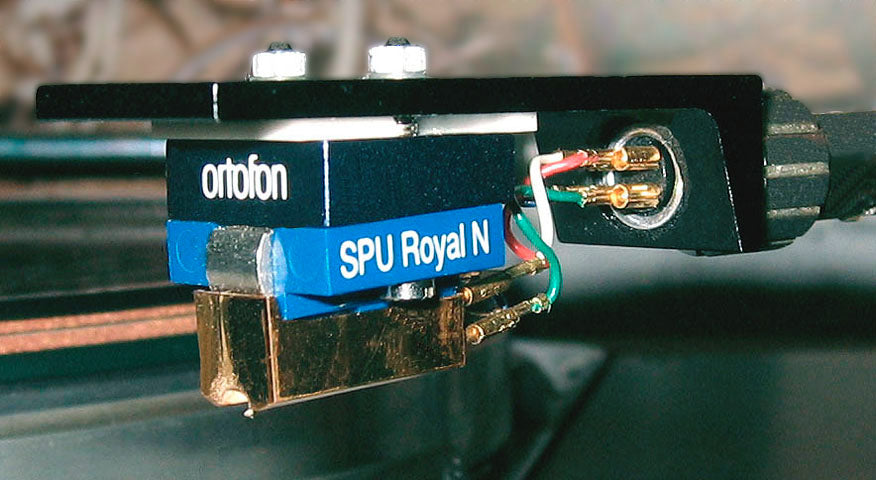

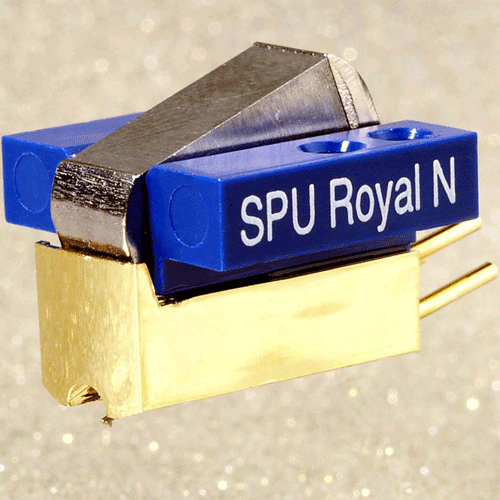

Fonorivelatori a Bobina Mobile ORTOFON SPU ROYAL N
Technical data Output voltage at 1000 Hz, 5cm/sec. 0.2 mV Channel balance at 1 kHz < 1 dB Channel separation at 1 kHz > 25 dB Channel separation at
...
Descrizione
| Technical data | |
| Output voltage at 1000 Hz, 5cm/sec. | 0.2 mV |
| Channel balance at 1 kHz | < 1 dB |
| Channel separation at 1 kHz | > 25 dB |
| Channel separation at 15 kHz | > 20 dB |
| Frequency range at - 3dB | 20-60.000 Hz |
| Frequency response | 20-20.000 Hz + 1,5 / - 0 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 70 µm |
| Compliance, dynamic, lateral | 8 µm/mN |
| Stylus type | Nude Ortofon Replicant 100 |
| Stylus tip radius | r/R 5/100 µm |
| Tracking force range | 2.5-3.5 g (25-35 mN) |
| Tracking force, recommended | 3.0 g (30 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 6 Ohm |
| Recommended load impedance | > 100 Ohm |
| Coilwire material | Goldplated Silver |
| Cartridge colour | Blue/Gold |
| Cartridge weight | 13 g |
Fonorivelatori a Bobina Mobile ORTOFON SPU ROYAL N
Prezzo scontato€2.159,00 EUR
Prezzo €2.399,00 EUR
| Technical data | |
| Output voltage at 1000 Hz, 5cm/sec. | 0.2 mV |
| Channel balance at 1 kHz | < 1 dB |
| Channel separation at 1 kHz | > 25 dB |
| Channel separation at 15 kHz | > 20 dB |
| Frequency range at - 3dB | 20-60.000 Hz |
| Frequency response | 20-20.000 Hz + 1,5 / - 0 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 70 µm |
| Compliance, dynamic, lateral | 8 µm/mN |
| Stylus type | Nude Ortofon Replicant 100 |
| Stylus tip radius | r/R 5/100 µm |
| Tracking force range | 2.5-3.5 g (25-35 mN) |
| Tracking force, recommended | 3.0 g (30 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 6 Ohm |
| Recommended load impedance | > 100 Ohm |
| Coilwire material | Goldplated Silver |
| Cartridge colour | Blue/Gold |
| Cartridge weight | 13 g |
