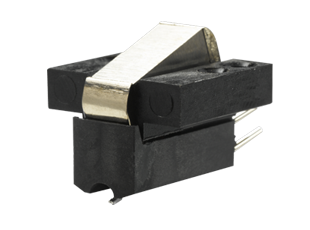

Fonorivelatori a Bobina Mobile ORTOFON SPU CLASSIC N E
Technical data Output voltage at 1000 Hz, 5cm/sec. 0.2 mV Channel balance at 1 kHz < 1 dB Channel separation at 1 kHz > 20 dB Channel separation at
...
Descrizione
Technical data | |
Output voltage at 1000 Hz, 5cm/sec. | 0.2 mV |
Channel balance at 1 kHz | < 1 dB |
Channel separation at 1 kHz | > 20 dB |
Channel separation at 15 kHz | > 10 dB |
Frequency range at - 3dB | 20-25.000 Hz |
Frequency response | 20-20.000 Hz + 3 / - 2 dB |
Tracking ability at 315Hz at recommended tracking force *) | 65 µm |
Compliance, dynamic, lateral | 8 µm/mN |
Stylus type | Nude elliptical |
Stylus tip radius | r/R 8/18 µm |
Tracking force range | 3.0-5.0 g (30-50 mN) |
Tracking force, recommended | 4.0 g (40 mN) |
Tracking angle | 20° |
Internal impedance, DC resistance | 6 Ohm |
Recommended load impedance | > 10 Ohm |
Coilwire material | High Purity Copper (OFC) |
Cartridge colour | Black |
Cartridge weight | 13 g |
Fonorivelatori a Bobina Mobile ORTOFON SPU CLASSIC N E
Prezzo scontato€899,00 EUR
Prezzo €999,00 EUR
Technical data | |
Output voltage at 1000 Hz, 5cm/sec. | 0.2 mV |
Channel balance at 1 kHz | < 1 dB |
Channel separation at 1 kHz | > 20 dB |
Channel separation at 15 kHz | > 10 dB |
Frequency range at - 3dB | 20-25.000 Hz |
Frequency response | 20-20.000 Hz + 3 / - 2 dB |
Tracking ability at 315Hz at recommended tracking force *) | 65 µm |
Compliance, dynamic, lateral | 8 µm/mN |
Stylus type | Nude elliptical |
Stylus tip radius | r/R 8/18 µm |
Tracking force range | 3.0-5.0 g (30-50 mN) |
Tracking force, recommended | 4.0 g (40 mN) |
Tracking angle | 20° |
Internal impedance, DC resistance | 6 Ohm |
Recommended load impedance | > 10 Ohm |
Coilwire material | High Purity Copper (OFC) |
Cartridge colour | Black |
Cartridge weight | 13 g |
