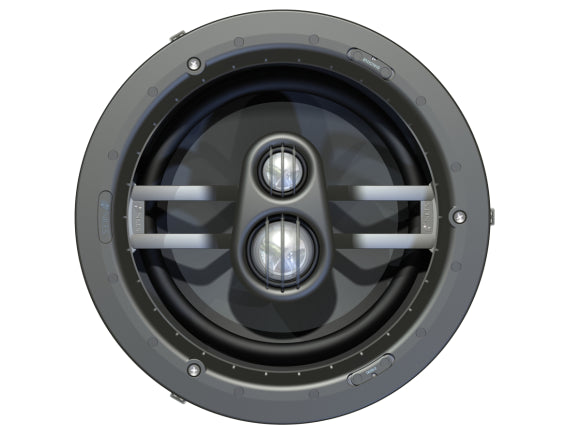

Diffusore IN-CEALING 2 vie NILES DS8HD

FEATURES
Patent-pending Fully Pivoting Woofer Assembly Focuses The Bass And Midrange Directly Into The Listening Area
8" Aluminum Ceramic Woofer Cone With Curvilinear Profile And Extended Pole Provides Natural Flat Response And Moves Any Ringing Frequencies To The Inaudible Range
1" NCAT (Nano Coated Ceramic, Aluminum & Titanium) Dome Tweeter Utilizes A Vapor Deposited Coating
1-1/2" NCAT (Nano Coated Ceramic, Aluminum & Titanium) Dome Midrange Provides Ultra-resolution Midrange Frequencies
Zero-diffraction Tweeter Assembly Pivots Up To 15° (30° When The Woofer Is In Its Maximum Position) For Precise Aiming Of High Frequencies To The Listening Area
Kapton Non-conductive Voice Coil Former And Copper Shorting Caps Combine To Lower Distortion And Increase High Frequency Sound Pressure Levels
Magnetically Attached, Rust-resistant Grille Covers Install Quickly And Provide A Low Profile Look
Tweeter Level Switch Enables Precise Adjustments To Match Room Acoustics
Weather-resistant Construction Enables Installation In Wet Environments And Outdoors
Optional Custom-tuned Rear Enclosure Is Precisely Shaped For Predictable Sound Performance And To Reduce Sound Transfer Into Adjacent Rooms Or Spaces

SPECIFICATIONS
Recommended Amplifier Power: 10 - 160 Watts
Impedance: 8 Ohm Nominal; 6 Ohm Minimum
Frequency Response: 48 Hz To 21 KHz +/ -3 DB
Maximum SPL: 115 DB
Crossover Frequency: 1.5 KHz/4 KHz
Frame Dimensions (with Grille): 11-1/4" (28.52 Cm) Diameter
Hole Cutout Dimensions: 9-3/4" (24.76 Cm) Diameter
Depth Behind Ceiling (5/8" Drywall): 5-5/16" (13.6 Cm)
