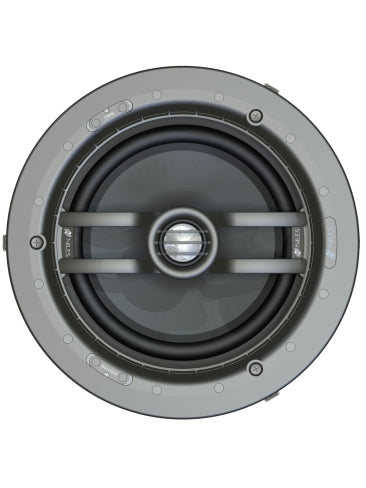

Diffusore IN-CEALING 2 vie NILES DS7HD

FEATURES
Patent-pending Fully Pivoting Woofer Assembly Focuses The Bass And Midrange Directly Into The Listening Area
Integrated Baffle/frame Assembly Increases The Cone Area For Deeper Bass Than Competitive Speakers Same Diameter
7" Aluminum Ceramic Woofer Cone With Curvilinear Profile And Extended Pole Provides Natural Flat Response
1" NCAT (Nano Coated Ceramic, Aluminum & Titanium) Dome Tweeter Utilizes A Vapor Deposited Coating To Move Any Ringing Frequencies Outside The Range Of Hearing While Providing Additional Stiffening For Ultra-detailed High Frequencies
Kapton Non-conductive Voice Coil Former And Copper Shorting Caps Combine To Lower Distortion And Increase High Frequency Sound Pressure Levels
Dialog Switch Enhances Vocal Presence When Used As The Center Channel In A Home Theater
Tweeter Level Switch Enables Precise Adjustments To Match Room Acoustics
Weather-resistant Construction Enables Installation In Wet Environments And Outdoors
Optional Custom-tuned Rear Enclosure Is Precisely Shaped For Predictable Sound Performance And To Reduce Sound Transfer Into Adjacent Rooms Or Spaces

SPECIFICATIONS
Recommended Amplifier Power: 10 - 160 Watts
Impedance: 8 Ohm Nominal; 6 Ohm Minimum
Frequency Response: 48 Hz To 21 KHz +/ -3 DB
Maximum SPL: 109 DB
Crossover Type: Asymmetric 3-4th Order Computer Optimized Linkwitz Riley
Crossover Frequency: 2.8 KHz
Magnet Weight: 21.8 Oz.
Frame Dimensions (with Grille): 9-7/8" (25.15 Cm)
Hole Cutout Dimensions: 8-1/2" (21.60 Cm) Diameter
Depth Behind Ceiling (5/8" Drywall): 5-5/16" (13.6 Cm)
