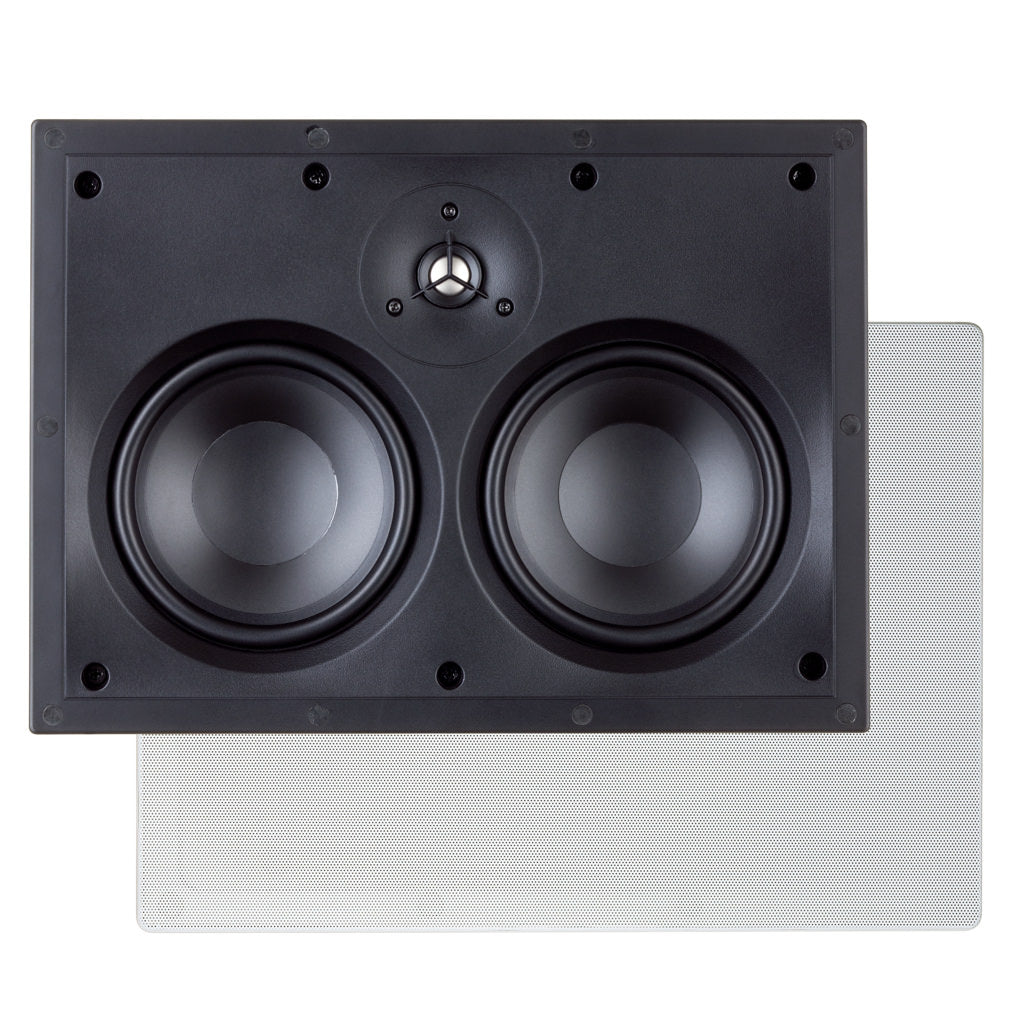

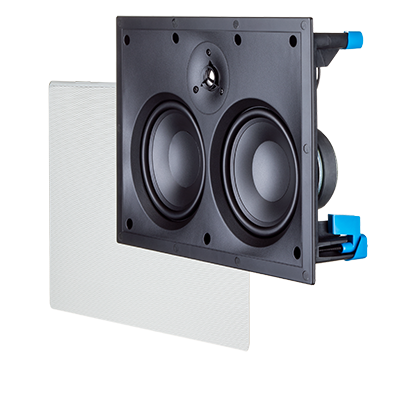

Paradigm H55-LCR V2 Diffusore da incasso

Design

3-driver, 2-way in-wall left/center/right, ABS chassis & mounting clamps

Crossover

2nd-order electro-acoustic at 2.5 kHz

Frequency Response   On-Axis

±2 dB from 75 Hz - 20 kHz

Frequency Response   30° Off-Axis

±2 dB from 75 Hz - 18 kHz

High Frequency Driver

3/4" (1.9cm) PTD™ dome

Midrange Frequency Driver

Two 5.5" (14cm) mineral-filled polypropylene cones

Low Frequency Extension

60 Hz

Sensitivity   Room / Anechoic

89 dB / 85 dB

Impedance

Compatible with 8 ohms

Suitable Amplifier Power Range

15-100 W

Maximum Input Power

70 W

Finishes

White, paintable grille

Weight

5.9 lbs. (2.7 kg)

Overall Dimensions

12.625" (32.1cm) Height
9.25" (23.5cm) Width

Cut-Out Dimensions

8.25" (20.9cm) Height
11.625" (29.5cm) Width

Minimum Mounting Depth
Depth required is the distance
between 1/2" drywall, or similar material.

2.75" (7cm)
