New MCA multi-channel amplifiers are Crafted in Canada and perfectly match the new AVM 60 processor & MRX receivers.

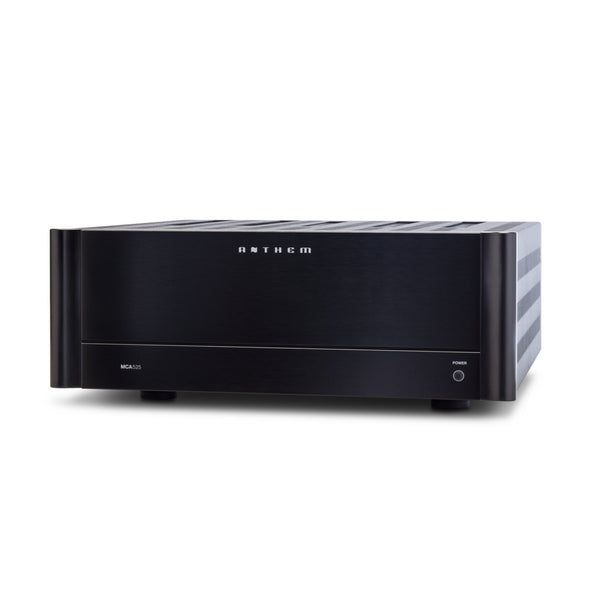

To complement the NEW AVM 60 A/V Processor, Anthem introduces the new MCA 525, 325 and 225 power amplifiers. Available in 5, 3 and 2-channel configurations, these new MCA amplifiers feature more robust and efficient power and heavy-duty reliability. The new MCA Series delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background.
Like all Anthem products the MCA 525, MCA 325 and MCA 225, designed and Crafted in Canada, are like no other amplifiers in the world: custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminum heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry. Superior craftsmanship that is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum.
||3 Single-Ended, 3 Balanced, 1 Relay Trigger (3.5-mm Mono Jack)
||3 Pairs Speaker Binding Posts, 1 Relay Trigger (3.5-mm Mono Jack)
||3 On/Off Modes (Trigger, Manual, Auto)
POWER OUTPUT (PER CHANNEL)
(Continuous RMS, 20 Hz - 20 kHz, <1% THD)
POWER BANDWIDTH 90 kHz (200 W @ 8 Ω)
FREQUENCY RESPONSE 20 Hz - 20 kHz (±0.1 db);
THD + N 0.0010% @ 1 kHz; 0.015% @ 20 kHz (100 W into 8 Ω)
INPUT SENSITIVITY 1.5 VRMS for 225 W into 8 Ω
INPUT IMPEDANCE 10 k Ω (RCA); 15 k Ω (XLR)
DAMPING FACTOR 300 @ 1 kHz (ref. 8 Ω)
S/N RATIO 120 db, A-weighted (ref. 225 W)
CHANNEL SEPARATION >65 db (100 Hz - 10 kHz)
VOLTAGE GAIN 29 db
SLEW RATE 30 v/µs
POWER REQUIREMENTS 1200 W @ maximum power output (8 Ω load)
DIMENSIONS (H X W X D): Heights Include Feet) 6-5/8" (16.9 cm) Wide x 17-1/4" (43.8 cm) Wide x 18-1/8" (46 cm) Deep
RACKMOUNTED HEIGHT (WITH OPTICAL KIT) 4U
WEIGHT (Unpacked) 61 lb (27.5 kg)
